spring 打印json格式的数据

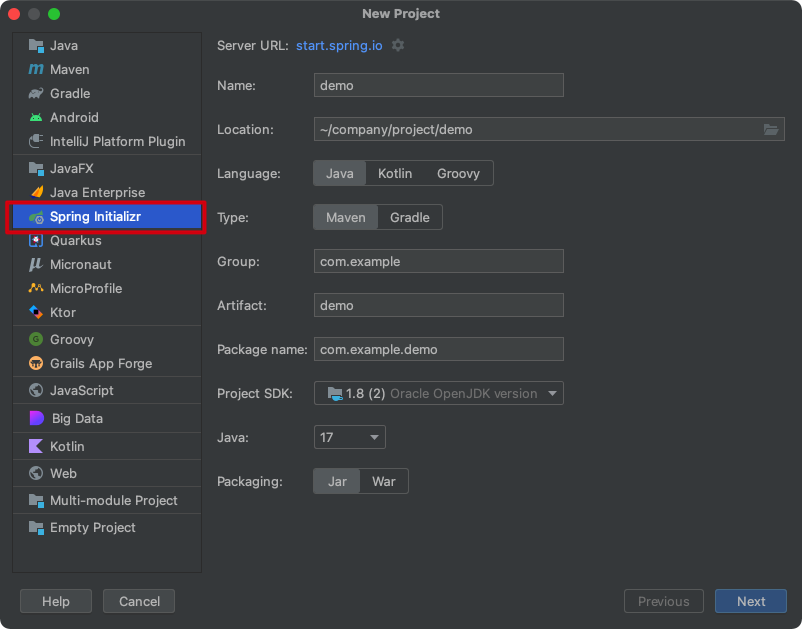

创建spring项目

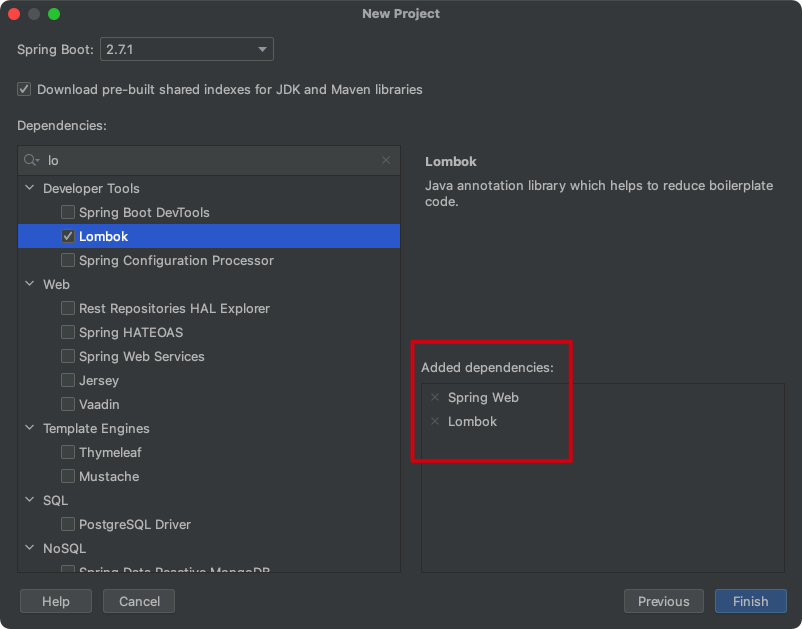

只需要引入 spring-web、lombok即可
示例项目结构
src
├── main
│ ├── java
│ │ └── com
│ │ └── example
│ │ └── elkb0demo
│ │ ├── Elkb0DemoApplication.java
│ │ └── controller
│ │ └── TestController.java
│ └── resources
│ ├── application.yml
│ ├── logback-spring.xml
│ ├── static
│ └── templates
└── test
└── java
└── com
└── example
└── elkb0demo
└── Elkb0DemoApplicationTests.java
application.yml
server:
port: 8081
logging:
level:
com.example.elkb0demo: debug
# config: classpath:logback-spring.xml
spring:
application:
name: test
profiles:
active: dev引入依赖
<dependency>
<groupId>net.logstash.logback</groupId>
<artifactId>logstash-logback-encoder</artifactId>
<version>7.2</version>
</dependency>配置logback-spring.xml
<?xml version="1.0" encoding="UTF-8"?>
<!-- 日志级别从低到高分为TRACE < DEBUG < INFO < WARN < ERROR < FATAL，
如果设置为WARN，则低于WARN的信息都不会输出 -->
<!-- scan:当此属性设置为true时，配置文档如果发生改变，将会被重新加载，默认值为true -->
<!-- scanPeriod:设置监测配置文档是否有修改的时间间隔，如果没有给出时间单位，默认单位是毫秒。
当scan为true时，此属性生效。默认的时间间隔为1分钟。 -->
<!-- debug:当此属性设置为true时，将打印出logback内部日志信息，实时查看logback运行状态。
默认值为false。 -->
<configuration scan="true" scanPeriod="10 seconds">
<property resource="application.yml"/>
<!-- name的值是变量的名称，value的值时变量定义的值。通过定义的值会被插入到logger上下文中。定义后，可以使“${}”来使用变量。 -->
<springProperty scop="context" name="spring.application.name" source="spring.application.name" defaultValue="test"/>
<property name="log.path" value="${user.dir}/logs/${spring.application.name}"/>
<!--输出到控制台-->
<appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
此日志appender是为开发使用，只配置最底级别，控制台输出的日志级别是大于或等于此级别的日志信息
<filter class="ch.qos.logback.classic.filter.ThresholdFilter">
<level>info</level>
</filter>
<encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
<providers class="net.logstash.logback.composite.loggingevent.LoggingEventJsonProviders">
<arguments>
<includeNonStructuredArguments>false</includeNonStructuredArguments>
</arguments>
<pattern>
<pattern>
{
"date":"%date{"yyyy-MM-dd HH:mm:ss.SSS",UTC}",
"level":"%level",
"message":"%msg",
"traceId": "%mdc{traceId}",
"thread": "%thread",
"serverName": "${spring.application.name}"
}
</pattern>
</pattern>
<stackTrace>
<throwableConverter class="net.logstash.logback.stacktrace.ShortenedThrowableConverter">
<maxDepthPerThrowable>30</maxDepthPerThrowable>
<maxLength>2048</maxLength>
<shortenedClassNameLength>100</shortenedClassNameLength>
<!-- <exclude>^sun.reflect..*.invoke</exclude>-->
<exclude>^net.sf.cglib.proxy.MethodProxy.invoke</exclude>
<!-- <evaluator class="myorg.MyCustomEvaluator"/>-->
<rootCauseFirst>true</rootCauseFirst>
</throwableConverter>
</stackTrace>
</providers>
<!-- <charset>UTF-8</charset>-->
</encoder>
</appender>
<!--level为 INFO 日志，时间滚动输出 -->
<appender name="INFO_FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
<!-- 正在记录的日志文档的路径及文档名 -->
<file>${log.path}/${spring.application.name}_info.log</file>
<!--日志文档输出格式-->
<encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
<providers class="net.logstash.logback.composite.loggingevent.LoggingEventJsonProviders">
<arguments>
<includeNonStructuredArguments>false</includeNonStructuredArguments>
</arguments>
<pattern>
<pattern>
{
"date":"%date{"yyyy-MM-dd HH:mm:ss.SSS",UTC}",
"level":"%level",
"message":"%msg",
"traceId": "%mdc{traceId}",
"thread": "%thread"
}
</pattern>
</pattern>
<stackTrace>
<throwableConverter class="net.logstash.logback.stacktrace.ShortenedThrowableConverter">
<maxDepthPerThrowable>30</maxDepthPerThrowable>
<maxLength>2048</maxLength>
<shortenedClassNameLength>100</shortenedClassNameLength>
<!-- <exclude>^sun.reflect..*.invoke</exclude>-->
<!-- <exclude>^net.sf.cglib.proxy.MethodProxy.invoke</exclude>-->
<!-- <evaluator class="myorg.MyCustomEvaluator"/>-->
<rootCauseFirst>true</rootCauseFirst>
</throwableConverter>
</stackTrace>
</providers>
<!-- <charset>UTF-8</charset>-->
</encoder>
<!-- 日志记录器的滚动策略，按日期，按大小记录 -->
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<!-- 每天日志归档路径以及格式 -->
<fileNamePattern>${log.path}/${spring.application.name}-info-%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>10MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
<!--日志文档保留天数-->
<maxHistory>15</maxHistory>
</rollingPolicy>
<!-- 此日志文档只记录info级别的 -->
<filter class="ch.qos.logback.classic.filter.LevelFilter">
<level>info</level>
<onMatch>ACCEPT</onMatch>
<onMismatch>DENY</onMismatch>
</filter>
</appender>
<logger name="org.springframework" level="INFO"/>
<!--开发环境:打印控制台-->
<springProfile name="dev">
<root level="info">
<appender-ref ref="CONSOLE"/>
<appender-ref ref="INFO_FILE"/>
</root>
</springProfile>
</configuration>
启动项目
. ____ _ __ _ _
/\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
( ( )___ | '_ | '_| | '_ / _` | \ \ \ \
\/ ___)| |_)| | | | | || (_| | ) ) ) )
' |____| .__|_| |_|_| |___, | / / / /
=========|_|==============|___/=/_/_/_/
:: Spring Boot :: (v2.5.13)
{"date":"2022-07-20 07:22:37.863","level":"INFO","message":"The following 1 profile is active: "dev"","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:38.721","level":"INFO","message":"BeanFactory id=78af57f2-3719-3e3e-8658-7353464f7be8","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:39.276","level":"INFO","message":"Tomcat initialized with port(s): 8081 (http)","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:39.336","level":"INFO","message":"Initializing ProtocolHandler ["http-nio-8081"]","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:39.337","level":"INFO","message":"Starting service [Tomcat]","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:39.338","level":"INFO","message":"Starting Servlet engine: [Apache Tomcat/9.0.62]","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:39.503","level":"INFO","message":"Initializing Spring embedded WebApplicationContext","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:39.503","level":"INFO","message":"Root WebApplicationContext: initialization completed in 1606 ms","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:39.981","level":"WARN","message":"Spring Cloud LoadBalancer is currently working with the default cache. You can switch to using Caffeine cache, by adding it and org.springframework.cache.caffeine.CaffeineCacheManager to the classpath.","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:40.081","level":"INFO","message":"Starting ProtocolHandler ["http-nio-8081"]","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:40.106","level":"INFO","message":"Tomcat started on port(s): 8081 (http) with context path ''","traceId":"","thread":"main","serverName":"test"}
{"date":"2022-07-20 07:22:40.119","level":"INFO","message":"Started Elkb0DemoApplication in 3.654 seconds (JVM running for 4.409)","traceId":"","thread":"main","serverName":"test"}
为什么使用json格式的log？
1、方便filebeat转换数据到ES中、不需要写特别的pipeline转换。
2、省去写正则解析数据的麻烦，日志格式和正则不匹配无法存储数据。
